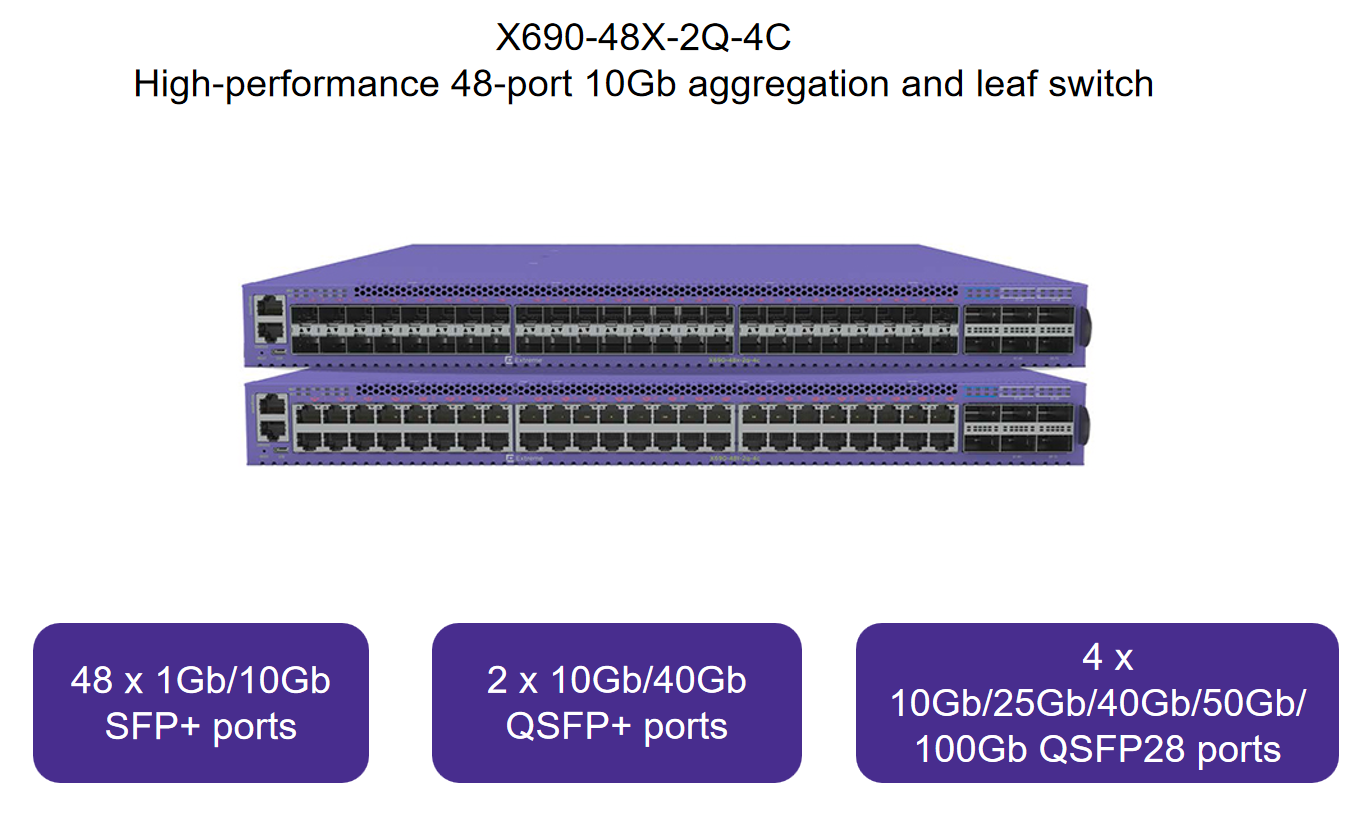

High-Density, 10Gb Enterprise LAN and Aggregation Switching The X690-48X-2Q-4C Series products are high-density, purpose-built 10Gb/100Gb switches designed for high-performance enterprise and aggregation applications. The X690-48X-2Q-4C can support a range of interface speeds, including 1Gb, 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb, all in a compact 1RU form factor. This enables the X690-48X-2Q-4C to be flexibly deployed in either Enterprise LAN or high-density top of rack applications. The X690 can also serve as the controlling aggregation switch within Extreme’s Extended Edge Switching solution.

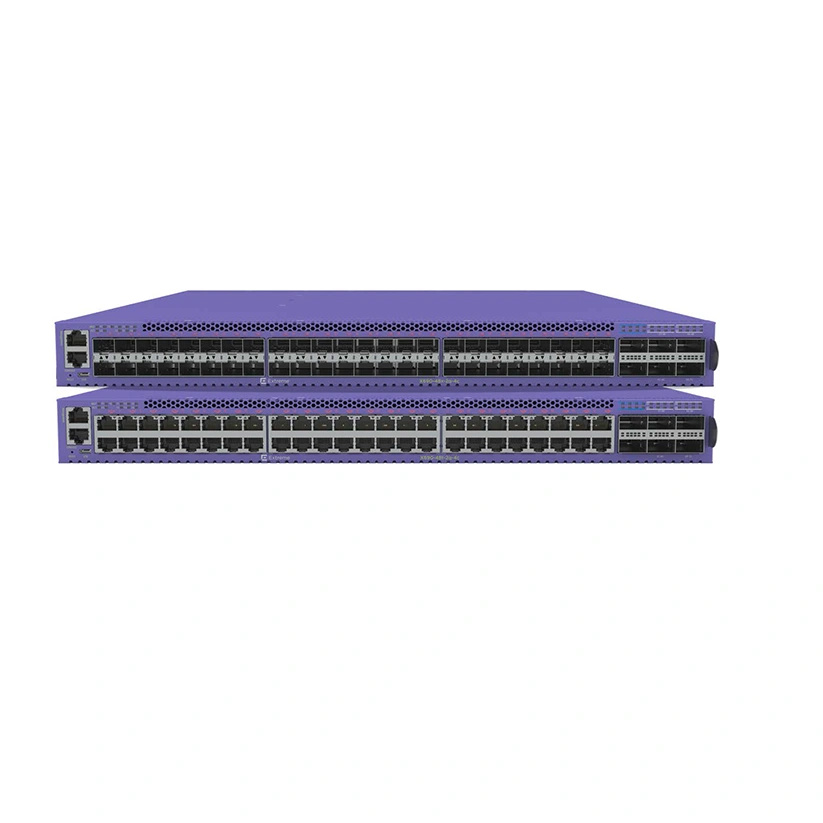

X690-48x-2q-4c
X690-48t-2q-4c
| Model | X690-48x-2q-4c | X690-48t-2q-4c |
|---|---|---|
| Ports | • 48 x 1Gb/10Gb SFP+ ports • 2 x 10Gb/40Gb QSFP+ ports • 4 x 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports • 1 x Serial console port RJ-45 • 1 x 10/100/1000BASE-T out-of-band management port • Micro-USB Type A storage port QSFP Port Configurations Support • 4 x 10Gb/40Gb QSFP+ ports and 2 10Gb/25Gb/40Gb/50Gb/ 100Gb QSFP28 ports or • 4 x 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports (two QSFP ports inactive) |
• 48 x 100Mb/1Gb/10Gb 10GBASE-T ports • 2 x 10Gb/40Gb QSFP+ ports • 4 x 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports • 1 x Serial console port RJ-45 • 1 x 10/100/1000BASE-T out-of-band management port • Micro-USB Type A storage port QSFP Port Configurations Support • 4 x 10Gb/40Gb QSFP+ ports and 2 10Gb/25Gb/40Gb/50Gb/ 100Gb QSFP28 ports or • 4 x 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports (two QSFP ports inactive) |
| Power Supplies | • Modular 770W AC power supply (up to two PSUs) • Modular 1100W DC power supply (up to two PSUs) • Front-Back and Back-Front airflow options |
• Modular 770W AC power supply (up to two PSUs) • Modular 1100W DC power supply (up to two PSUs) • Front-Back and Back-Front airflow options |
| Fan Modules | 6 fan modules Front-Back and Back-Front airflow options |
6 fan modules Front-Back and Back-Front airflow options |
| Dimensions | 17.4 in W / 19.2 in D / 1.7 in H (44.1 cm / 48.8 cm / 4.3 cm) |
17.4 in W / 19.2 in D / 1.7 in H (44.1 cm / 48.8 cm / 4.3 cm) |
| Performance | • 1.76Tbps Switching Capacity • 759Mpps Forwarding Rate • Average Latency: 800 ns |
• 1.76Tbps Switching Capacity • 759Mpps Forwarding Rate • Average Latency: 2.3 µsec |
Family of 10Gb/100Gb Switches with Advanced Enterprise Capabilities
application support
Flexible System Configurations
