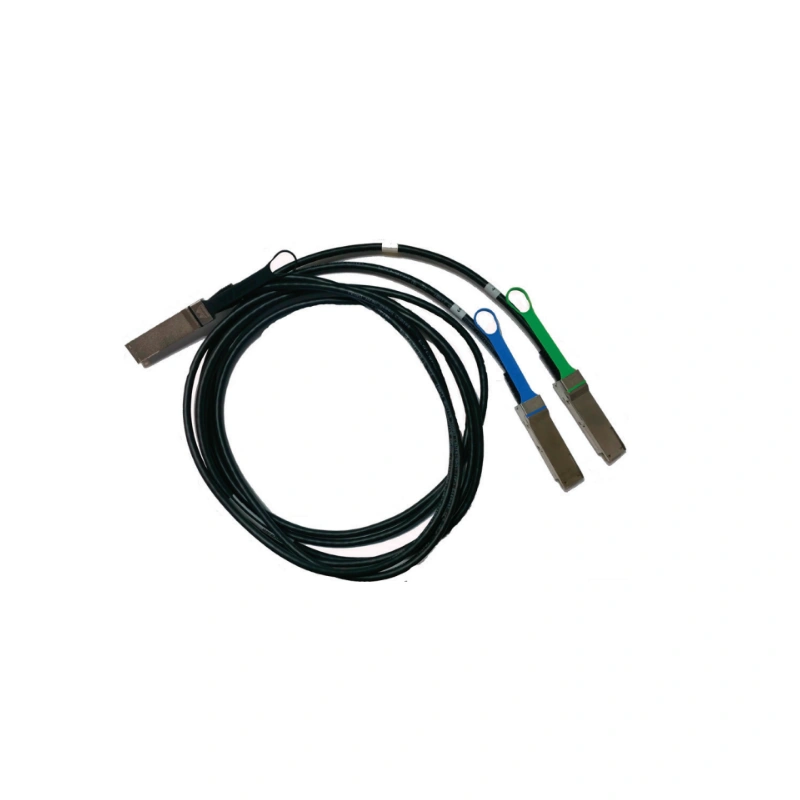

MCP7H50-H002R26 Mellanox MCP7H50-H0xxRyy DAC splitter cables(1) are high-speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.

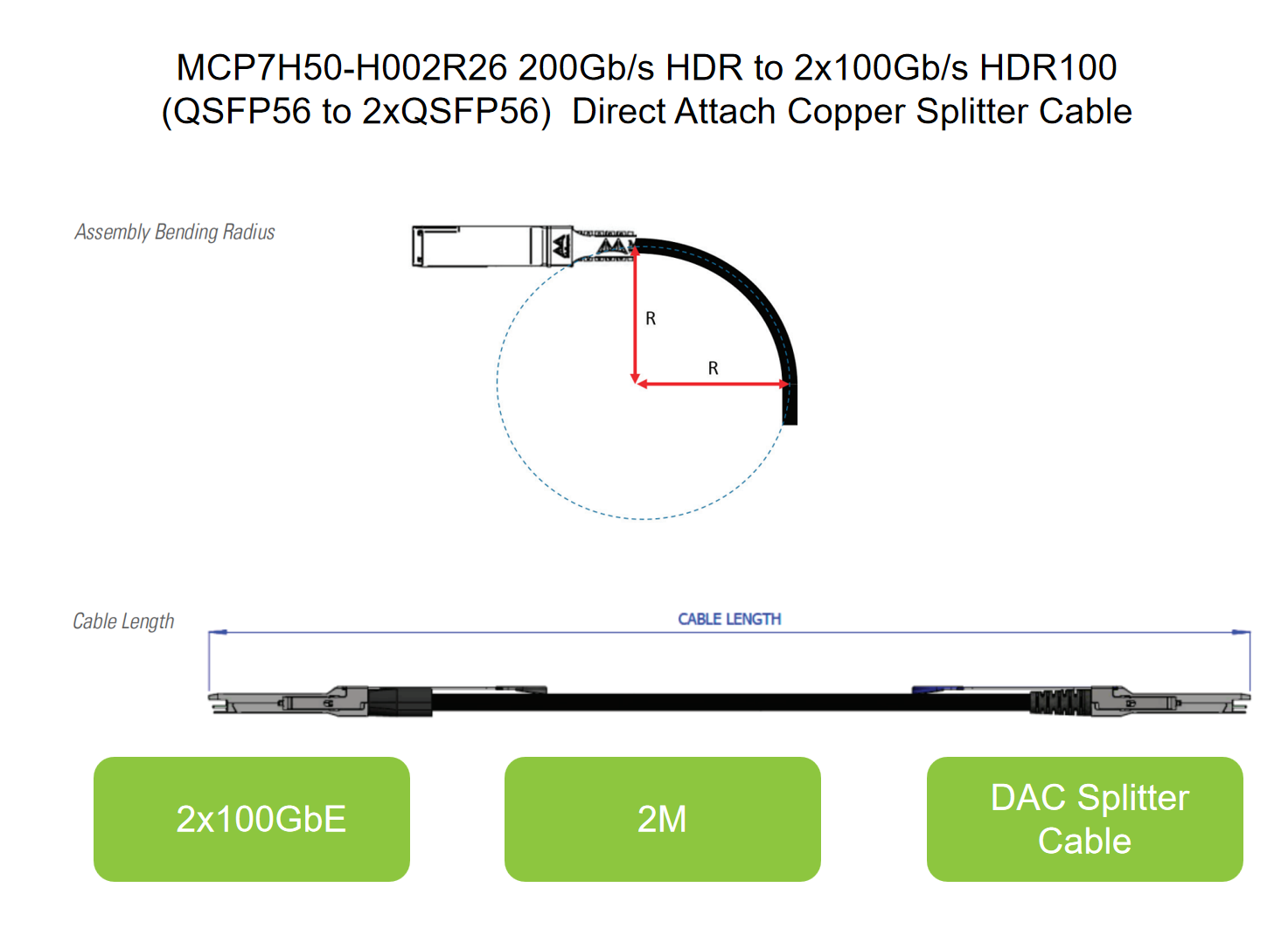

MCP7H50-H002R26 cables provide connectivity between system units with a 200Gb/s HDR QSFP56 port on one side and two 100Gb/s HDR100 QSFP56 ports on the other side. The cable connects the data signals from each of the 2 dual copper pairs on the single QSFP56 (pair 1&2, 3&4) end to the dual copper pair of each of the QSFP56 (pair 1&2) ends on the multi-port side. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system. Mellanox’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. MCP7H50-H002R26 enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the box installation experience, performance and durability.MCP7H50-H002R26
| Model number | Description |
|---|---|
| MCP7H50-H001R30 | Mellanox passive copper hybrid cable, IB HDR 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, colored, 1m, 30AWG |
| MCP7H50-H01AR30 | Mellanox passive copper hybrid cable, IB HDR 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, colored, 1.5m, 30AWG |
| MCP7H50-H002R26 | Mellanox passive copper hybrid cable, IB HDR 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, colored, 2m, 30AWG |
–IBTA InfiniBand HDR compliant
– 200Gb/s HDR to 2x100Gb/s HDR100 data rate
– 4x 50Gb/s PAM4 modulation
– SFF-8665 compliant
– Operating case temperature 0-70°C
– Single 3.3V supply voltage
– BER (Bit Error Rate) better than 1E-15 with Mellanox InfiniBand HDR systems
– Hot pluggable
– RoHS compliant
– LSZH (Low Smoke Zero Halogen) jacket
– LF (Lead Free) HF (Halogen Free) PCB
– SFF-8636 compliant I2 C management interface
