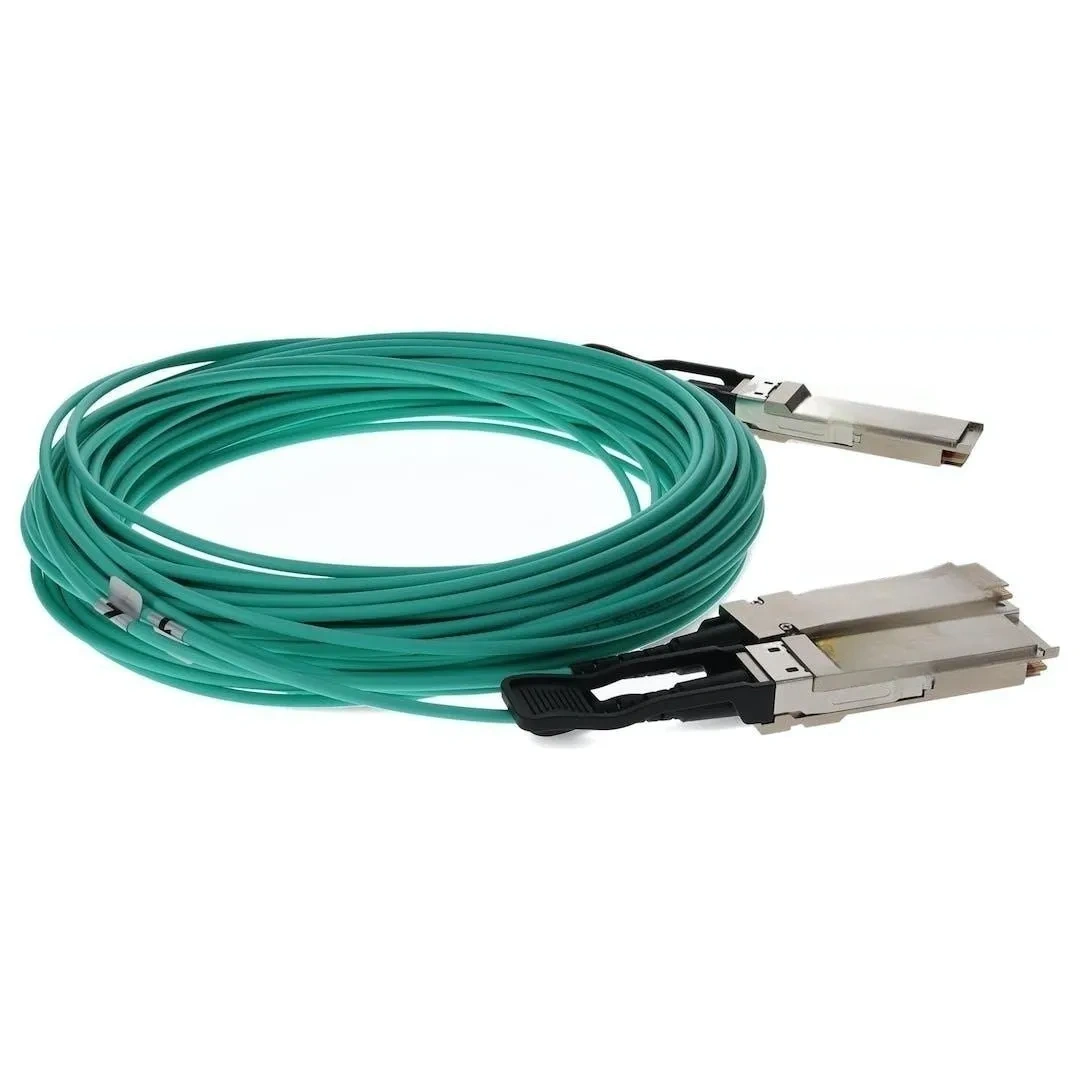

Mellanox MFS1S50-H010E is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), cost effective 200GbE to 2 x 100GbE active optical splitter cable (AOC) designed for use in 200GbE Ethernet systems.
The MFS1S50-H010E cable is compliant with SFF-8665 for the QSFP56 pluggable solution. It provides connectivity between system units with a 200GbE connector on one side and two separate 100GbE connectors on the other side, such as a switch and two servers. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends.
MFS1S50-H010E Each QSFP56 end of the cable contains an EEPROM providing product and status monitoring information, which can be read by the host system. Rigorous production testing ensures the best out-of-the-box installation experience, performance anddurability. Mellanox’s unique quality active fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.
| Model number | Description |
|---|---|
| MFS1S50-V003V | Mellanox active fiber cable, 200GbE, 200Gb/s, QSFP56, LSZH, 3m |
| MFS1S50-V005V | Mellanox active fiber cable, 200GbE, 200Gb/s, QSFP56, LSZH, 5m |
| MFS1S50-V010V | Mellanox active fiber cable, 200GbE, 200Gb/s, QSFP56, LSZH, 10m |
| MFS1S50-V015V | Mellanox active fiber cable, 200GbE, 200Gb/s, QSFP56, LSZH, 15m |
| MFS1S50-V020V | Mellanox active fiber cable, 200GbE, 200Gb/s, QSFP56, LSZH, 20m |
| MFS1S50-V030V | Mellanox active fiber cable, 200GbE, 200Gb/s, QSFP56, LSZH, 30m |
–200GbE to 2x100GbE data rate
– 4x 50Gb/s PAM4 modulation
– Programmable Rx output amplitude and pre-emphasis
– SFF-8665 compliant QSFP56 port
– Single 3.3V power supply
– 4.35W power dissipation (typ., 200G end)
– Bit Error Rate (BER) better than 1E-15 the Mellanox systems
– Up to 30m length
– Hot pluggable
– RoHS compliant
– IEEE 802.3 200GBASE-SR4 and 100GBASE-SR2 compliant
– SFF-8636 compliant I2 C management interface
