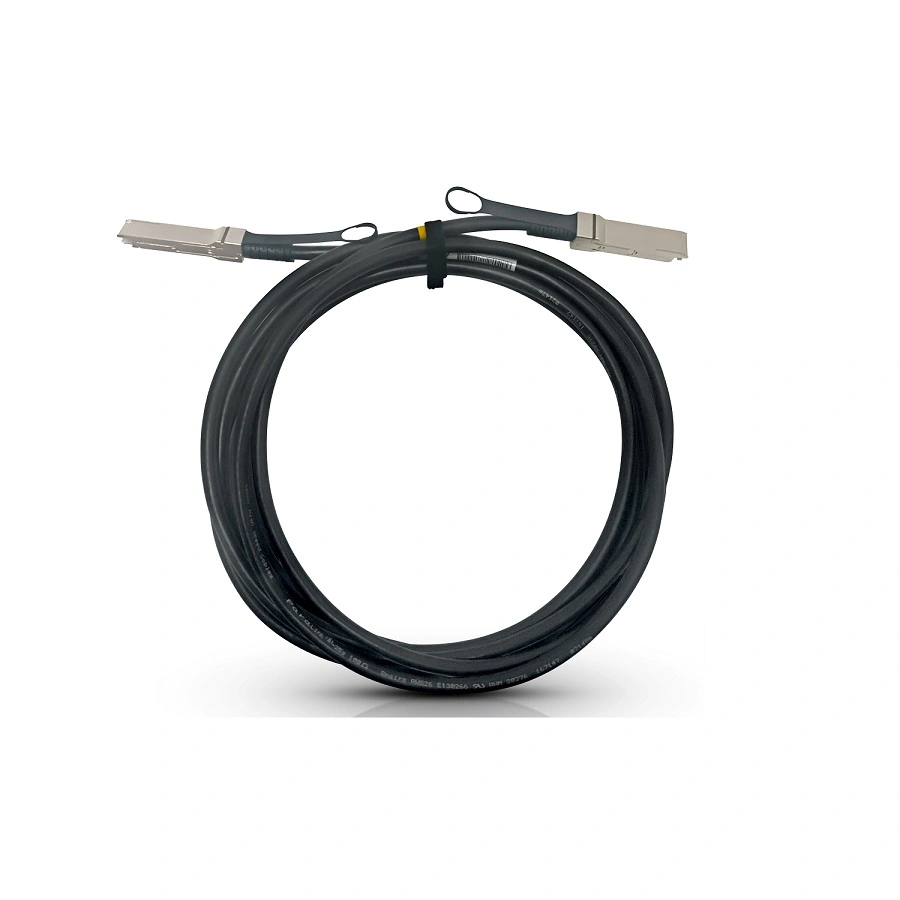

Mellanox MCP1650-H002E26 DAC Cable IB HDR up to 200Gb/s QSFP56 2m NVIDIA MCP1650-H002E26 DAC Cable IB HDR up to 200Gb/s QSFP56 2m

NVIDIA MCP1650-H002E26 Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 2m Black Pulltab 26AWG

HDR 200Gb/s QSFP56 Direct Attach Copper Cable
NVIDIA DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.

NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.

NVIDIA’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

• IBTA InfiniBand HDR compliant

• Up to 200Gb/s data rate

• 4x 50Gb/s PAM4 modulation

• SFF-8665 compliant

• Operating case temperature 0-70C

• Single 3.3V supply voltage

• Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems

• Hot pluggable

• RoHS compliant

• LSZH (Low Smoke Zero Halogen) jacket

• LF (Lead Free) HF (Halogen Free) PCB

• SFF-8636 compliant I2C management interface
