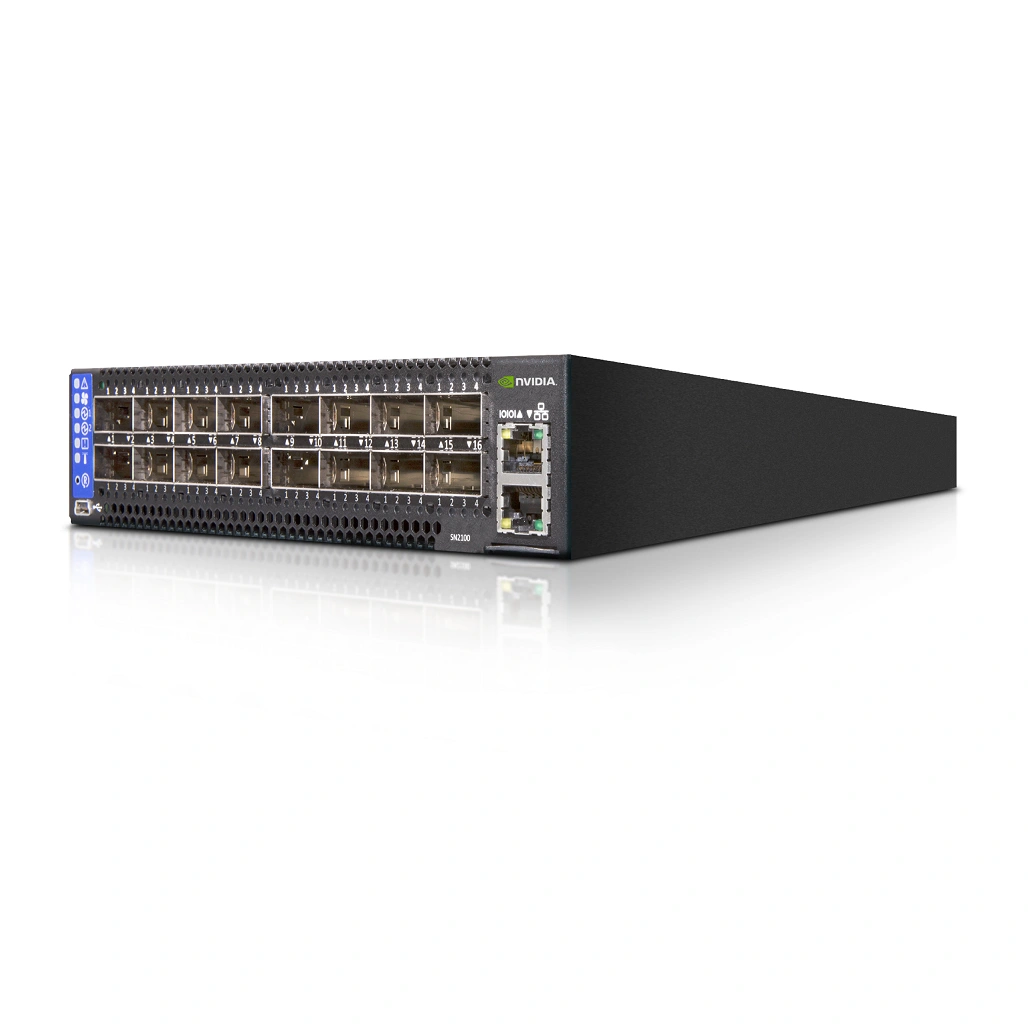

The MSN2100-CB2F network switch provides a high density, side-by-side 100GbE switching solution which scales up to 128 ports in 1RU for the growing demands of today’s database, storage, and data centers environments.
The MSN2100-CB2F switch is an ideal spine and top of rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.
Powered by the Spectrum ASIC and packed with 16 ports running at 100GbE, the MSN2100-CB2F carries a whopping throughput of 3.2Tb/s with a landmark 2.38Bpps processing capacity in a compact 1RU form factor.
The MSN2100-CB2F carries a unique design to accommodate the highest rack performance. Its design allows side-by-side placement of two switches in a single 1RU slot of a 19” rack, delivering high availability to the hosts. The MSN2100-CB2F accommodates 16 ports running at 100GbE, with throughput of 1.6Tb/s and a 2.38Bpps processing capacity.
| Switch Model | SN2700 | SN2410 | SN2100 | SN2010 |
|---|---|---|---|---|
| Connectors | 32 QSFP28 100GbE | 48 SFP28 25GbE + 8 QSFP28 100GbE |
16 QSFP28 100GbE | 18 SFP28 25GbE + 4 QSFP28 100GbE Max 100GbE |
| Max 100GbE ports | 32 | 8 | 16 | 4 |
| Max 50GbE ports | 64 | 16 | 32 | 8 |
| Max 40GbE ports | 32 | 8 | 16 | 4 |
| Max 25GbE ports | 64 | 64 | 64 | 34 |
| Max 10GbE ports | 64 | 64 | 64 | 34 |
| Throughput | 3.2Tb/s | 2Tb/s | 1.6Tb/s | 850GbE |
| Packet Per Second | 4.7Bpps | 2.97Bpps | 2.38Bpps | 1.26Bpps |
| Latency | 300ns | 300ns | 300ns | 300ns |
| CPU | Dual-core x86 | Dual-core x86 | ATOM x86 | ATOM x86 |
| System Memory | 8GB | 8GB | 8GB | 8GB |
| SSD Memory | 32GB | 32GB | 16GB | 16GB |
| Size (W x H x D) | 1.72’’ x 16.84’’ x 27’’ (43.9mm x 427.8mm x 686mm) Short Depth: 1.72” x 16.84” x 17” (43.9mm x 428mm x 432mm) |
1.72’’ x 17.24’’ x 17’’ (43.9mm x 438mm x 436mm) |
1.72’’ x 7.87’’ x 20’’ (43.9mm x 200mm x 508mm) |
1.72’’ x 7.87’’ x 20’’ (43.9mm x 200mm x 508mm) |
| Weight | 7.7kg (18.4lb), Short, 2xDC 11.1kg (24.5lb) Standard, 2xAC |
8.52kg (18.8lb) | 4.54kg (10lb) | 4.54kg (10lb) |
