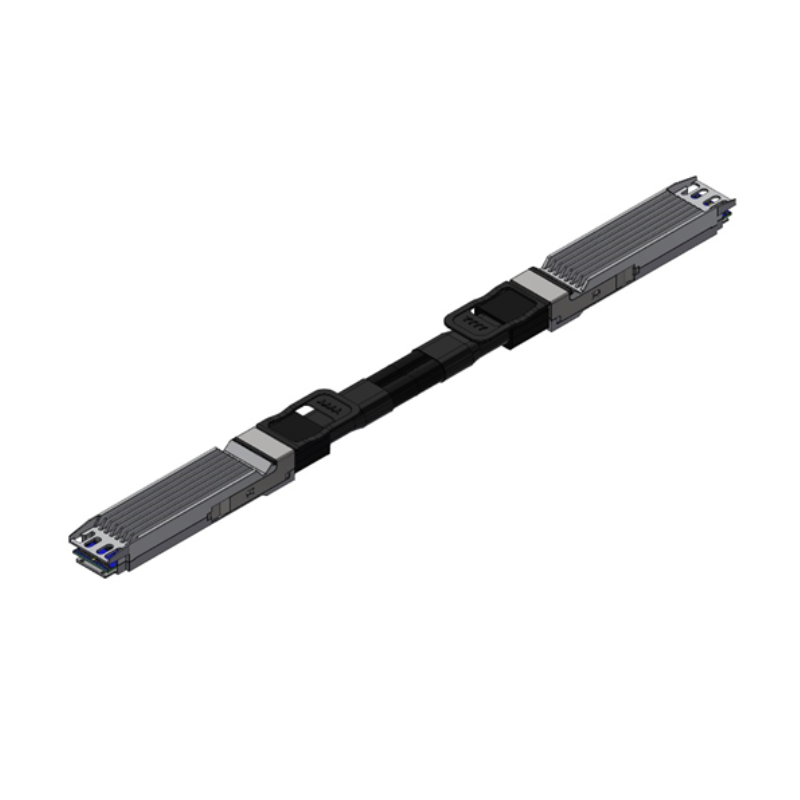

MCA4J80-N005 is a 800Gb/s twin-port OSFP (Octal Small Formfactor Pluggable)-to-2x400Gb/s twin-port OSFP Active Copper Cable (ACC) for InfiniBand NDR networking.
MCA4J80-N005 ACC cables are the second lowest-cost, lowest-latency, very low power consuming, high-speed links available due to their simplicity ofdesign and minimal components. The “active” term refers to the passive copper cable with an equalizer integrated circuit to extend the length to 3, 4, and 5 meters while maintaining very low-latency and very low-power at 1.5 Watts per end. Thin 30AWG is used for 4m lengths and thicker 26AWG for 5m. Each end includes an EEPROM which provides product identification and characteristics to the hostsystem. For lengths less than 3 meters, use passive DAC cables.
An ACC is a passive DAC with a pre-emphasis equalizer IC included in each end, enabling cable lengths of up to 5 meters while maintaining very low-latency and very low-power at 1.5 Watts a per end. Every cable length is tuned to reduce signal noise and back reflections. The ACC firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to.
MCA4J80-N005 cable solutions provide power-efficient connectivity enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.
| Model number | Description |
|---|---|
| MCA4J80-N003 | NVIDIA Active copper cable, IB twin port NDR, up to 800Gb/s, OSFP, 3m |
| MCA4J80-N004 | NVIDIA Active copper cable, IB twin port NDR, up to 800Gb/s, OSFP, 4m |
| MCA4J80-N005 | NVIDIA Active copper cable, IB twin port NDR, up to 800Gb/s, OSFP, 5m |
| MCA4J80-N003-FLT | NVIDIA Active copper cable, IB twin port NDR, up to 800Gb/s, OSFP, 3m, flat top |
| MCA4J80-N003-FTF | NVIDIA Active copper cable, IB twin port NDR, up to 800Gb/s, OSFP, 3m, flat to finned |
2x400Gb/s data rate
Based on 8-channels of 100G-PAM4 modulation
5m max length
1.5 Watts max per end
Operating case temperature 0°C to +70°C
Single 3.3V supply voltage
Hot pluggable
RoHS compliant
LSZH (Low Smoke Zero Halogen) jacket
LF (Lead Free) HF (Halogen Free) PCB
SFPmsa.org based
SFF-8636 based I2C management interface
2x400Gb/s
Quantum-2
InfiniBand or
Spectrum-4 Ethernet
switch-to-switch and
switch-to-DGX-H100

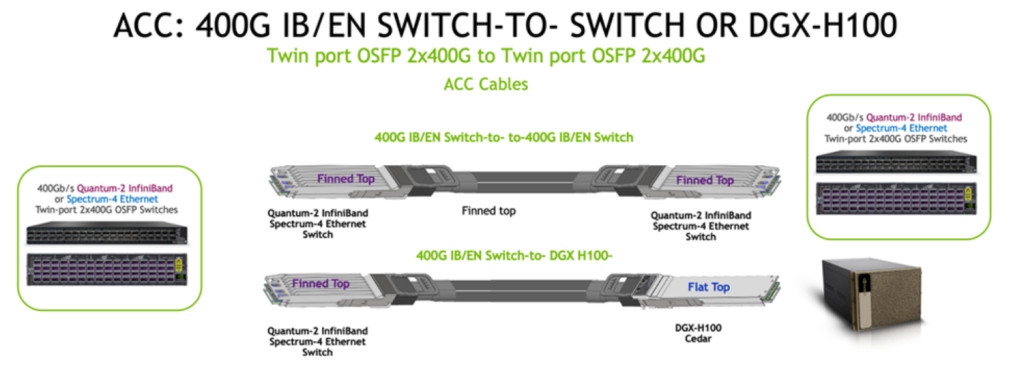

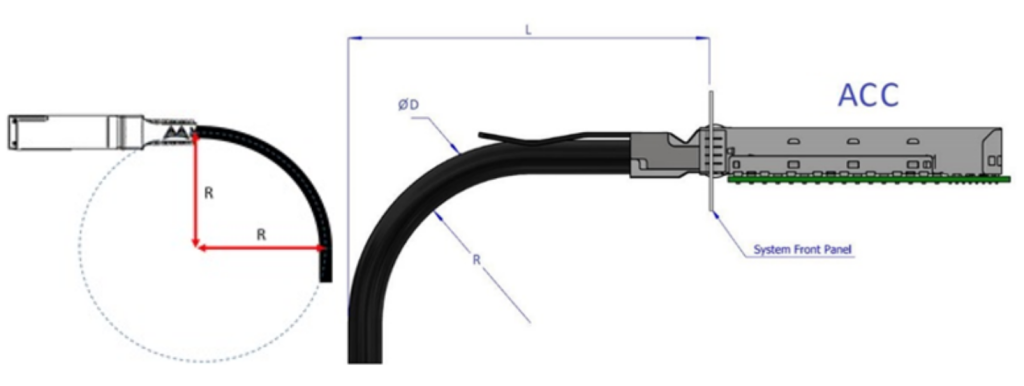

The main use case for the MCA4J80 is to link two 800Gb/s Quantum-2 switches to each other (up to 5-meters). The 3-meter, flat and finned-top cable is for linking Quantum-2 switches to DGX-H100 Cedar systems.
