Name: Mellanox network switch MQM9790-NS2F 64-port Non-blocking Unmanaged NDR 400Gb/s
Brand: hksageconnect_switch mellanox
Availability: InStock
Rating: 5 (1 reviews)

Description

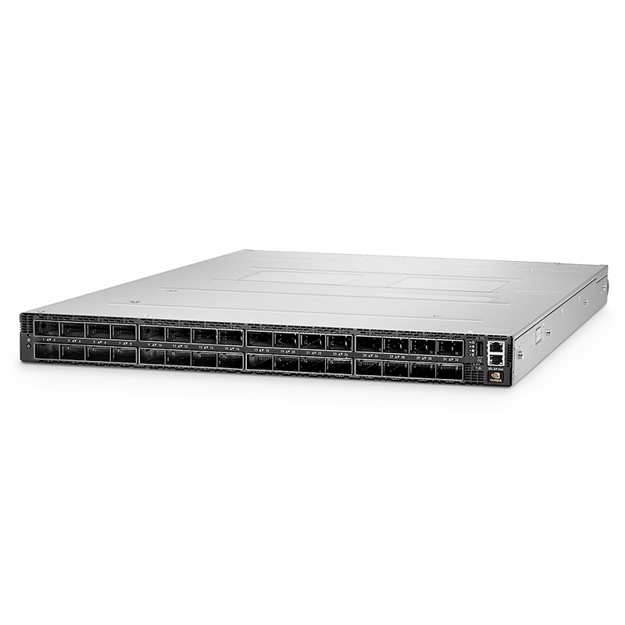

Mellanox network switch MQM9790-NS2F 64-port Non-blocking Unmanaged NDR 400Gb/s InfiniBand Switch

The mellanox network switch MQM9790-NS2F Quantum-2-based and MQM9790-NS2F switch systems deliver an unprecedented 64 ports of 400Gb/s InfiniBand per port in a 1U standard chassis design. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity.

Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP).

MQM9790-NS2F Specifications

Model number	MQM9700-NS2F	MQM9790-NS2F
Brand	mellanox	mellanox
product name	400Gb/s network switch	400Gb/s network switch
Speed	400Gb/s	400Gb/s
NDR	64	64
Height	1U	1U
Switching Capacity	51.2Tb/s	51.2Tb/s
Switching Capacity	OSFP	OSFP
mellanox	Management	Unmanagement

MQM9790-NS2F Key Features

Performance

400Gb/s per port

MQM9790-NS2F Switch radix

64 400Gb/s non-blocking ports with aggregate data throughput up to 51.2Tb/s

MQM9790-NS2F Connectors and cabling

32 octal small form-factor pluggable (OSFP) connectors; passive or active copper or active fiber cable; optical module

MQM9790-NS2F Power supply

1+1 redundant and hot-swappable power
Input range: 200-240Vac; US min: 2 phases of 100-110v—in total, at least 208v
80 Gold+ and ENERGY STAR certified

Management ports

1x USB 3.0 x1
1x USB for I2C channel
1x RJ45
1x RJ45 (UART)

System weight

14.5kg

System dimensions

Height: 1.7 in (43.6 mm)
Width: 17.0 in (438 mm)
Depth: 26.0 in (660.4 mm)
